°³¿ä

ÃÊ°í¼Ó µà¾ó ÄÚ¾î ÇÁ·Î¼¼ÀÎ ARM Cortex-A15ÀÇ °­·ÂÇÑ 3D ±×·¡ÇÈ ±â´ÉÀ» ÀÌ¿ëÇØ ÃÖ°íÀÇ ¸ð¹ÙÀÏ ¾ÛÀ» °³¹ß ÇÒ ¼ö ÀÖ½À´Ï´Ù

Android Á©¸®ºóÀ» ÀÌ¿ëÇØ ºü¸£°í ºÎµå·¯¿î ¼º´É°ú ½¬¿î Á¢±Ù¼ºÀ¸·Î °³¹ßÀ» ÇÒ ¼ö ÀÖ½À´Ï´Ù. ARNDALE Ä¿¹Â´ÏƼ º¸µå´Â ¿ÀǼҽº Äڵ带 ÅëÇØ Çϵå¿þ¾î¿Í ¼ÒÇÁÆ®¿þ¾î¸¦ ½±°Ô Á¢±ÙÇÏ¿© time-to-marketÀÌ »¡¶óÁý´Ï´Ù

Hardware Specification

  • CPU Board
    • Samsugn Exynos 5250 Dual core
    • Cortex-A15@1.7 GHz dual core subsystem with 64/128 bit SIMD NEON
    • 32KB(instruction)/32KB(DATA)L1 Cache and 1MB l2 Cache
    • 32-bit 800 MHz DDR3(L)/DDR3 2GB
  • Base Board
    • ITU 601 camera Interface
    • HDMI 1.4 interfaces with on-chip PHY
    • One channel eDP output Single WQXGA
    • MIPI DSI Standard Specification V1.01r11
    • MIPI CSI Standard Specification V1.0 Two ports
    • USB3.0 Host or Device 1-channel that supports SS(5Gbps) with on-chip PHY
    • USB2.0 Host or Device 1-channel that supports LS/FS/HS with on-chip PHY
    • USB HSIC 2-channel that supports 480Mbps with on-chip PHY
    • SATA 1.0/2.0/3.0 interface
    • One channel eMMC 4.5
    • One channel SDIO 3.0
    • Two channel SD 2.0
    • Four channel high-speed UART
    • (up to 3Mbps data rate for Bluetooth 2.0 EDR and IrDA 1.0SIR)
    • Three channel high-speed SPI
    • Three channel 24-bit I2S audio interface
    • Four channel I2C interface support , up 400kbps
    • Four channel HS-I2C up to 3.1Mps
    • Support 10/100Mbps Ethernet One Port
    • Support 6EA Configurable Button
    • Support 4EA Configurable LED
    • 1EA Power on Button
    • Hold currents up to 2.3A
    • INPUT POWER DC5V
  • Sound Board
    • Sound Codec : AsahiKASEI AK4953
    • Features 24-bit 96Khz 2-channel DAC and 2-channel ADC
    • Digital De-emphasis Filter (tc=50/15¥ìs, fs=32kHz, 44.1kHz, 48kHz)
    • Digital ALC (Automatic Level Control)
    • Digital Volume Control (+12dB ~ ?115dB, 0.5dB Step, Mute)
    • Capacitor-less Stereo Headphone Amplifier
      - HP-Amp Performance: S/(N+D): 80dB@24mW, S/N: 96dB
      - Output Power: 24mW@16¥Ø
      - Pop Noise Free at Power-ON/OFF
  • Connectivity Board
    • MediaTek MT6620 4 in 1 combo
      This is a 4-in-1 SiP Module which includes WLAN, Bluetooth, GPS and FM transmitter/receiver.
      With four advanced radio technologies integrated into a SiP Module,
      it provides the best and most convenient connectivity functions.
    • WIFI
      - 2.4Ghz, 5Ghz dual band
      - Support IEEE 802.11 a/b/g/n
      - WPS 2.0, WAPI (H/W)
      - Wi-Fi Direct (WFA P-2-P standard)
      SDIO 2.0 interface
    • Bluetooth
      - BT v2.1+EDR
      - BT v3.0+HS(802.11AMP) compliance
      - BT v4.0 Low Energy
      - FM over Bluetooth
      - High speed UART interface (4Mbps), PCM
    • GPS
      - GPS / A-GPS capability
      - 165 dBm tracking sensitivity
      - 160 dBm hot start sensitivity
      - 148 dBm cold / warm start sensitivity
      - UART interface
    • FM
      - 76-108MHz with 50KHz step
      - RDS / RBDS support
      - UART, audio, digital audio interface (I2S)

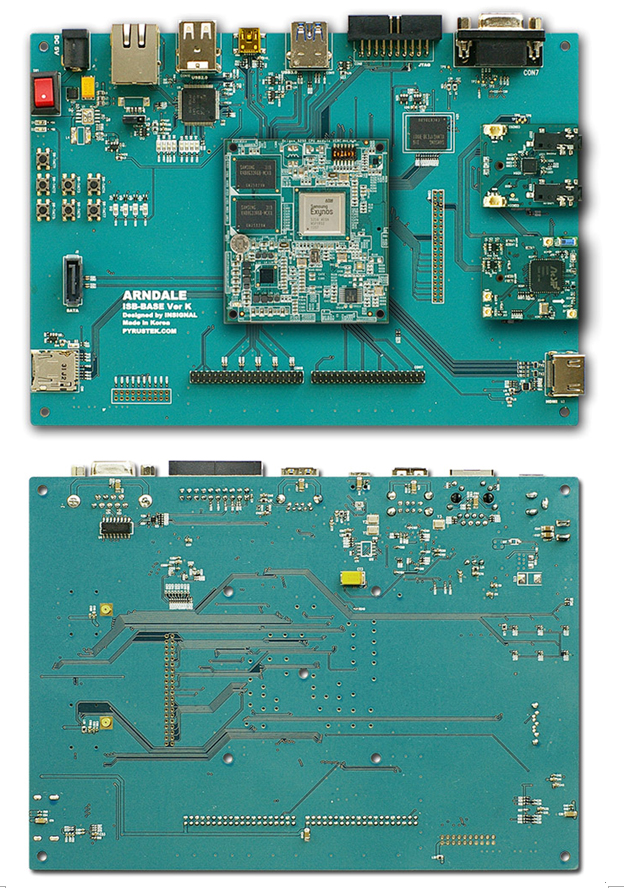

Board Specification

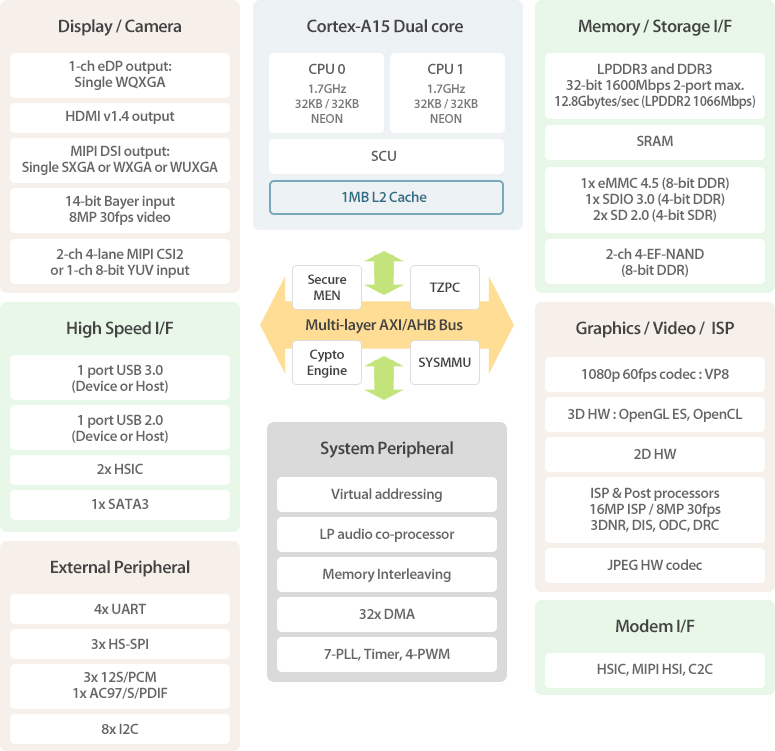

  • Block Diagram

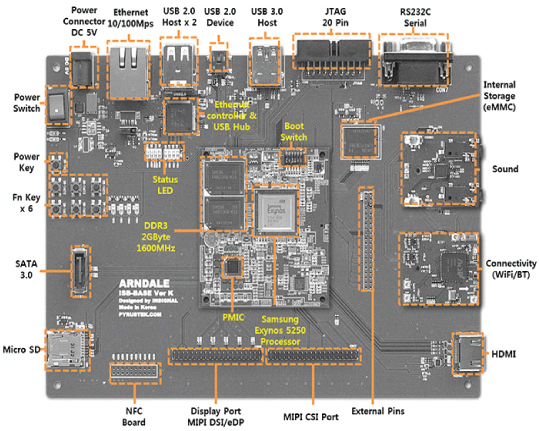

  • Function Position
